Home > Products > Ultrasonic Metal Welder > Standard Wedge Ultrasonic Welder WE

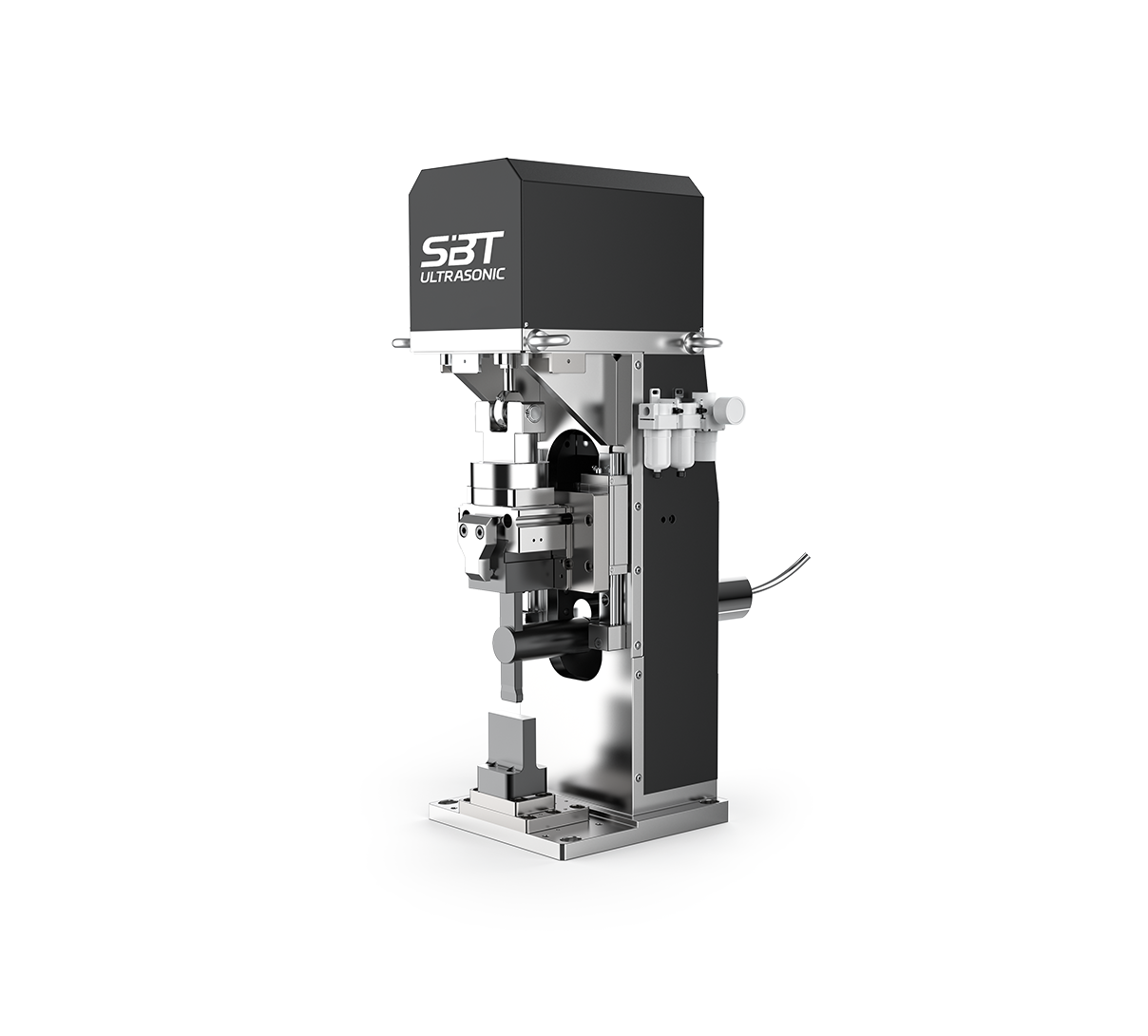

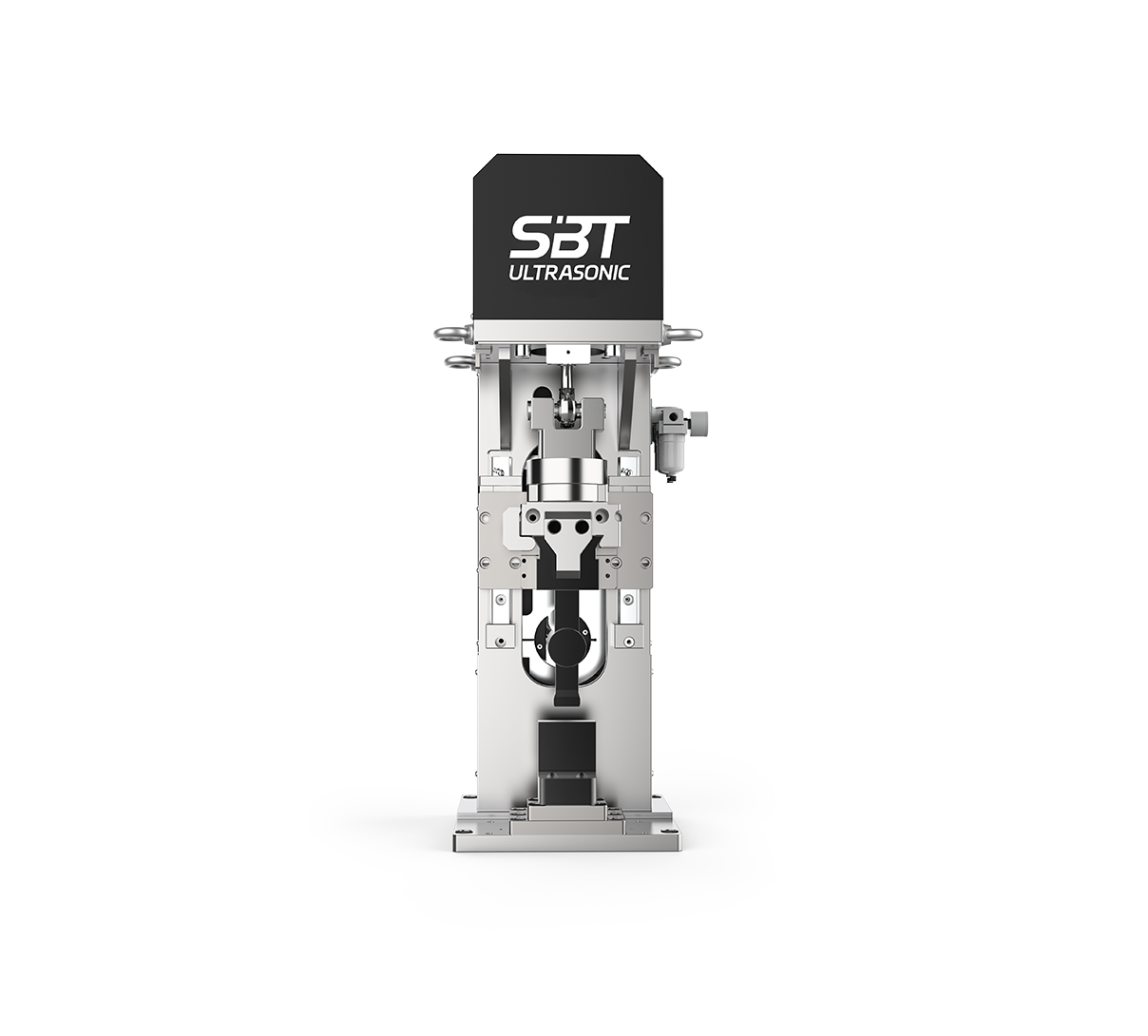

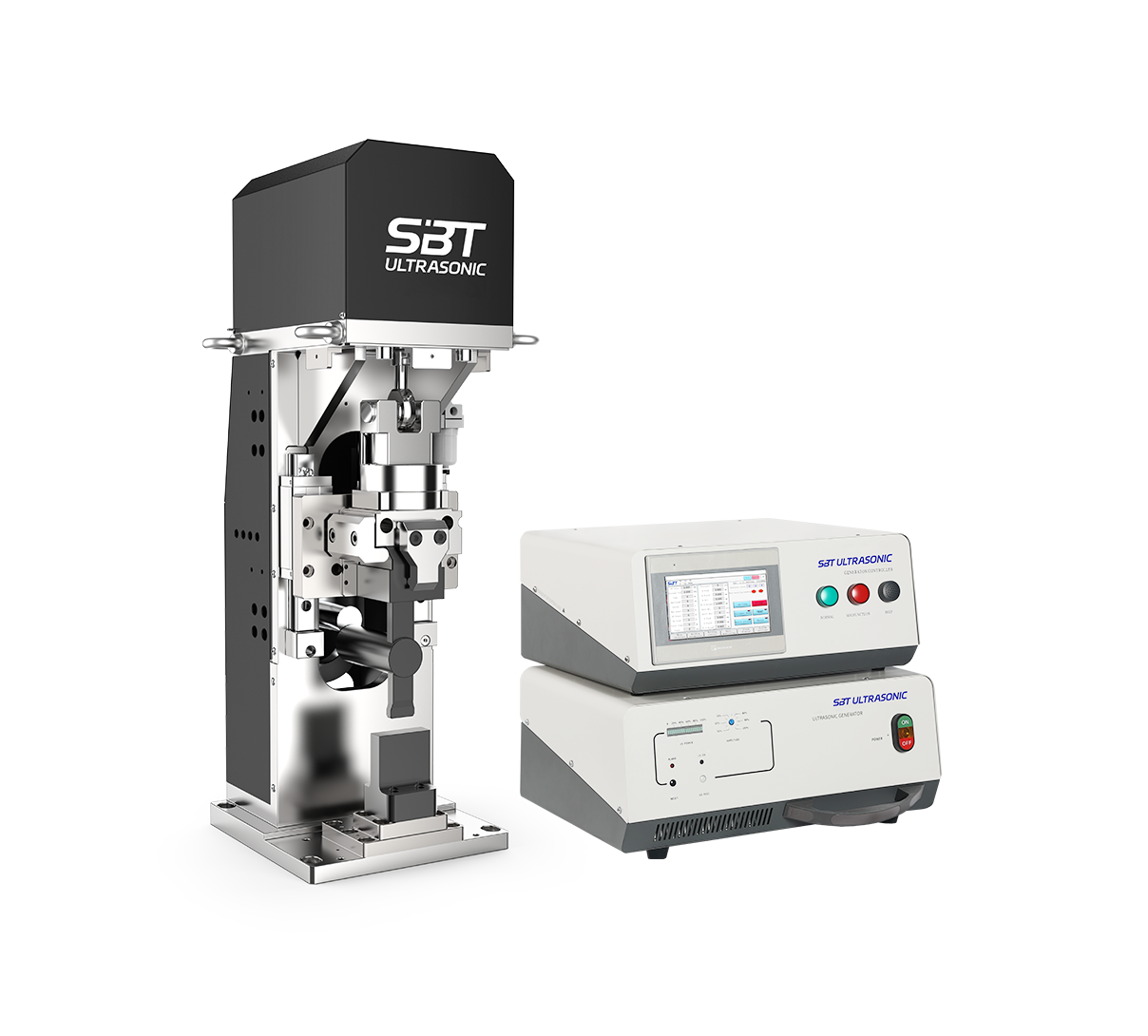

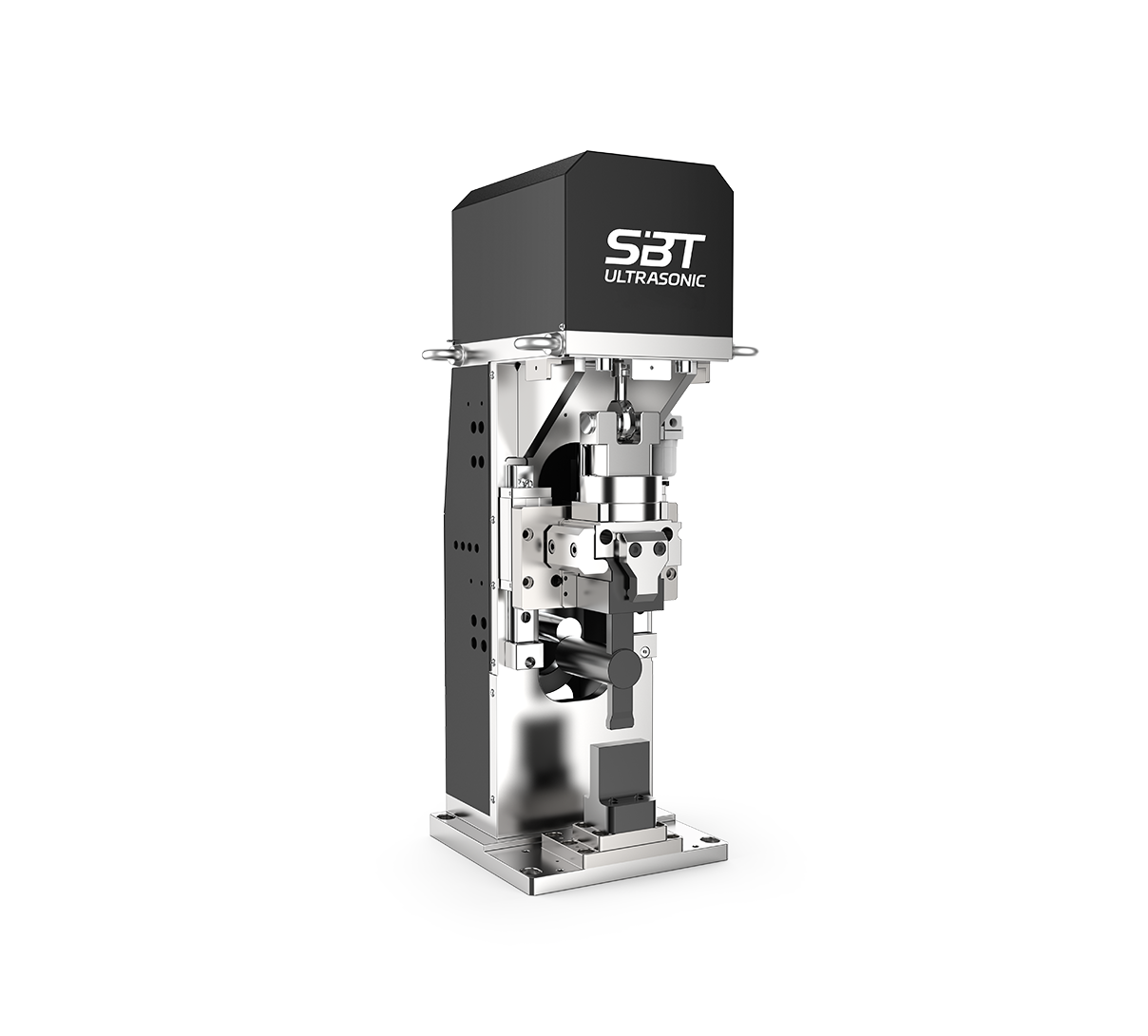

Standard Wedge Ultrasonic Welder WE
Application

Multi-layer, thicker and larger welding area.

Prismatic cell and pouch cell tab welding.

Copper or aluminum cables welding.

Copper or aluminum busbar welding.

Features

Tapered bar vertical welding mode

Fully digital ultrasonic system

7-inch large touch screen display

Welding horn without deformation

Welding horn and anvil tooling are customizable

Precise positioning

Easy and safe operation

Online welding monitor

Technical Parameter
Model
2CS-WE Series
Frequency
20kHz
Rated Power
5-7kW
Transducer Power
6-8kW
Welding Pressure
≤7300N
Interact
Serial/Ethernet
NG Signal
I/O
Weight
165kg
Welding Mode
Time/Energy/Height

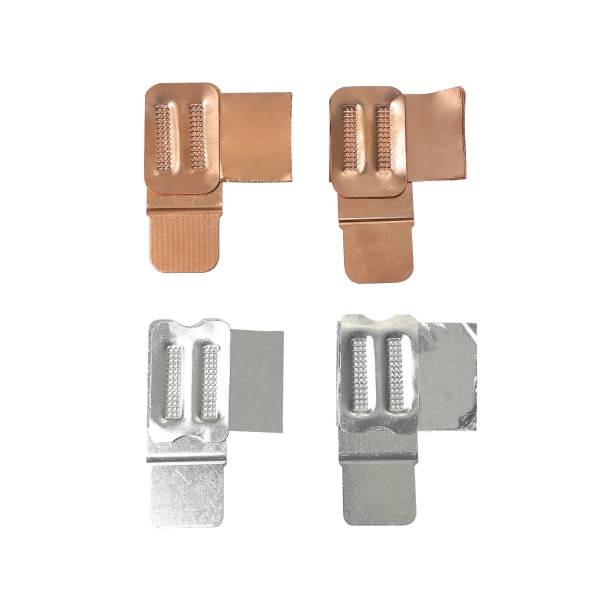

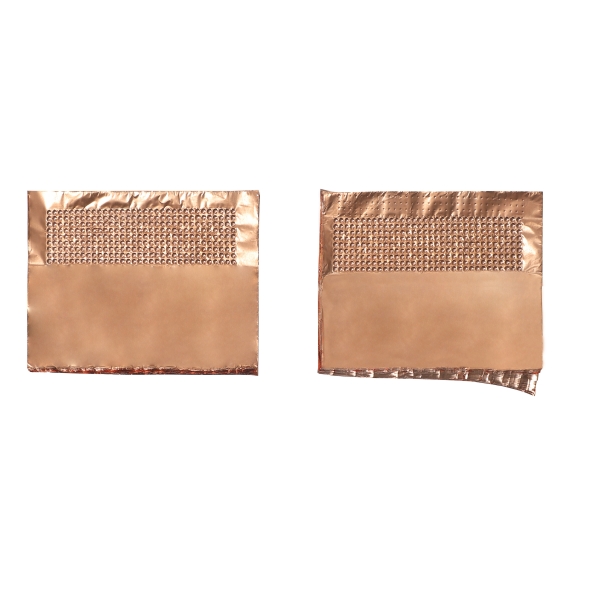

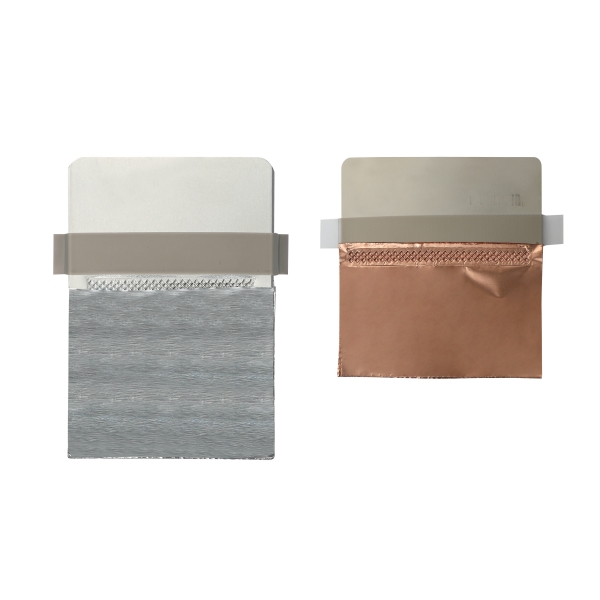

Samples
