Terminal Ultrasonic Welder

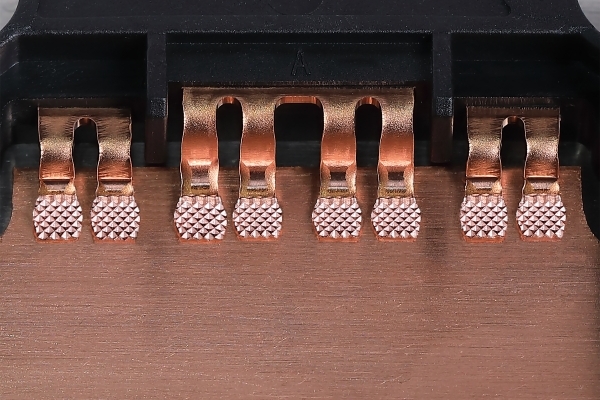

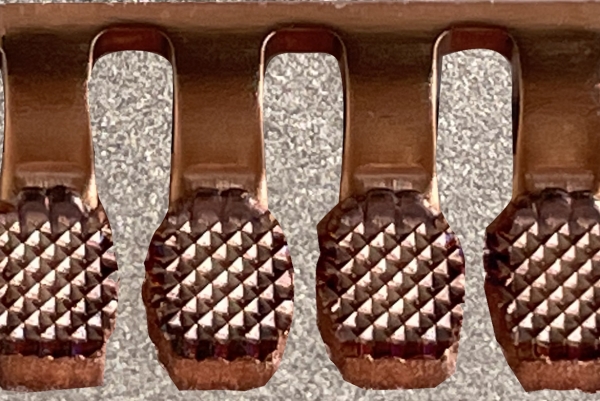

IGBT and SiC power module terminals

Good welding ability.

Large welding area.

CCD camera line scanning, automatic positioning and welding.

High precision motion control, multi-parameter precise control.

Flexible automation system that can support rapid changeover.

The device is scalable and

Welding mode

Time/Energy/Height

Loading mode

Semi-automatic/Fully automatic

Amplitude range

50%~100%

Welding area

2~25㎜2

Welding thickness

0.3~1.5㎜

Positioning system

Visual positioning and visual guidance

Motion system

Fully servo control

Quality monitoring

Various data monitoring, process control

MES system

Available

Optional

Scanning gun, dust-removing system
